Phonon modes 121~144

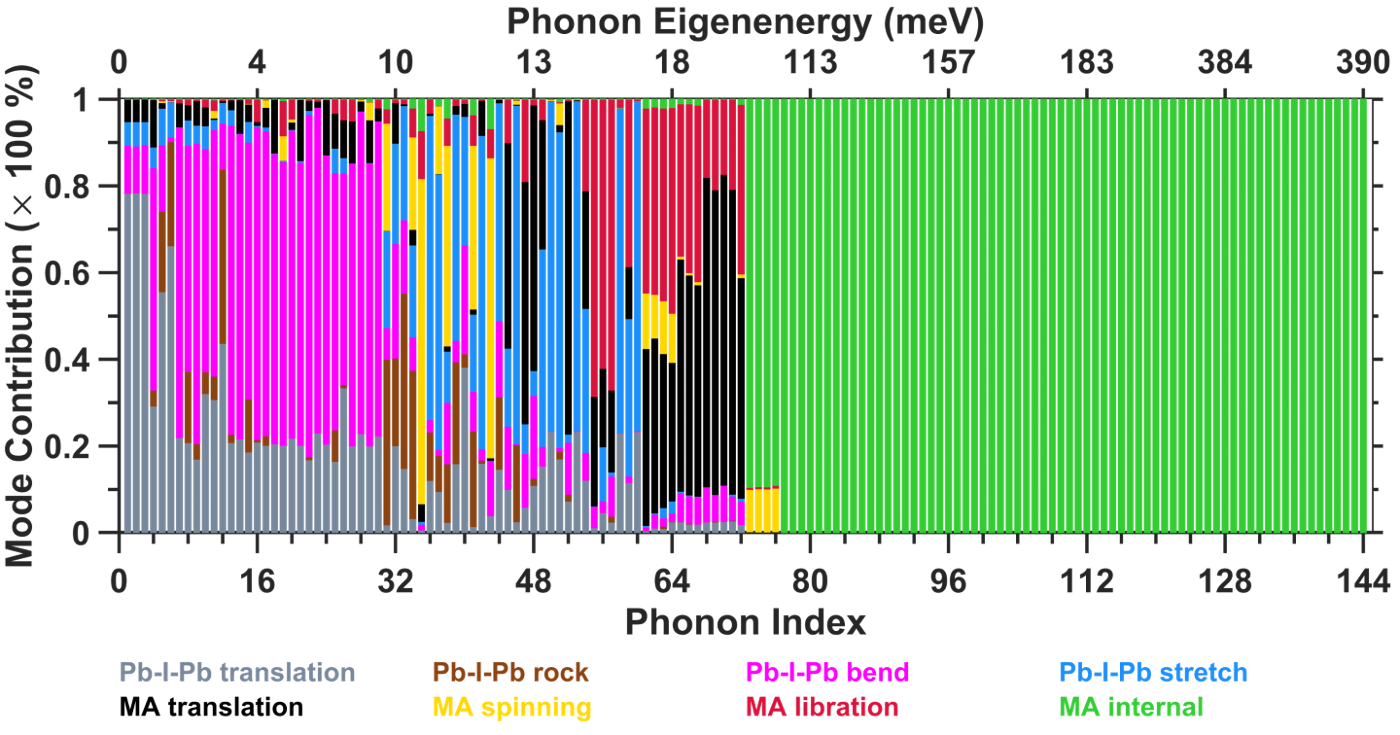

For each mode, mode energy was estimated at Γ point, and VEFs are written in % and color-indexed as in the above figure. (Click the figure of animation to see on full screen)

mode 121
374.0964 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric CH3 Stretch
mode 122
374.0969 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric CH3 Stretch

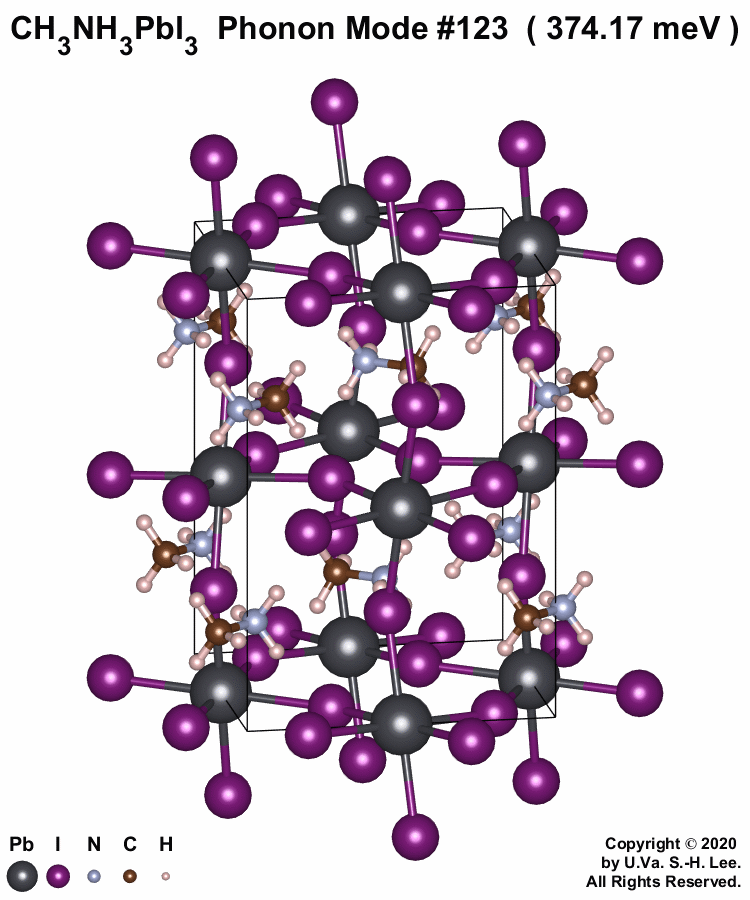

mode 123
374.1744 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric CH3 Stretch
mode 124
374.1767 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric CH3 Stretch
mode 125
383.7562 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch I
mode 126
383.7796 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch I
mode 127
383.8667 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch I
mode 128
383.8682 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch I
mode 129
384.9553 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric NH3 Stretch
mode 130
385.0144 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric NH3 Stretch
mode 131
385.3389 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric NH3 Stretch
mode 132
385.4111 meV

0% 0% 0% 0% 0% 0% 0% 100%
Symmetric NH3 Stretch
mode 133
385.8482 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch II
mode 134
385.8881 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch II

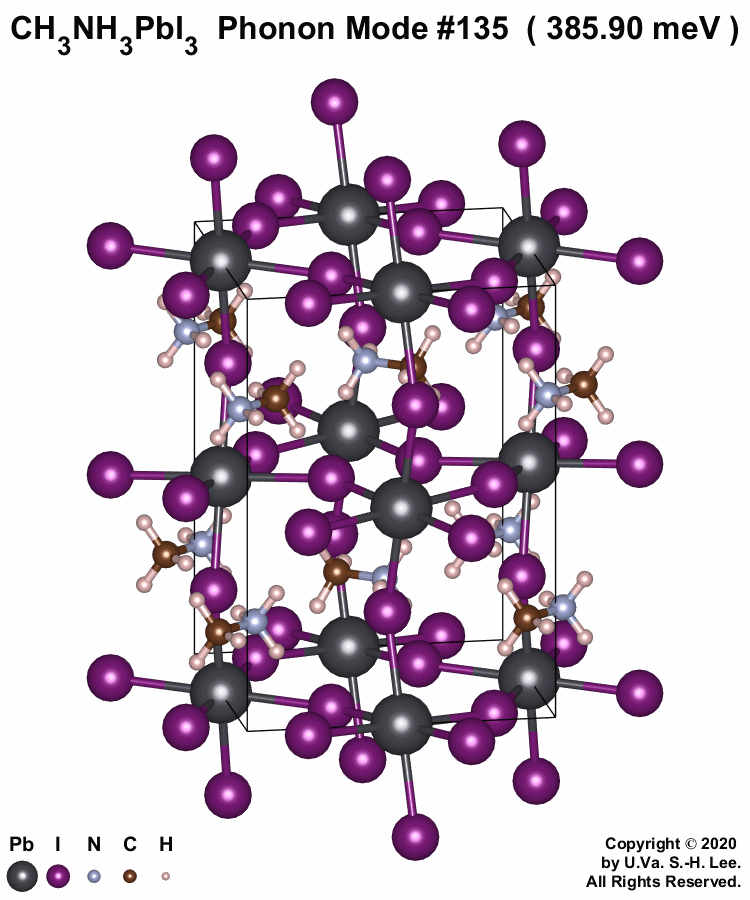

mode 135
385.9039 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch II
mode 136
385.928 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric CH3 Stretch II
mode 137
387.9029 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch I
mode 138
387.9556 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch I
mode 139
388.1912 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch I
mode 140
388.2928 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch I

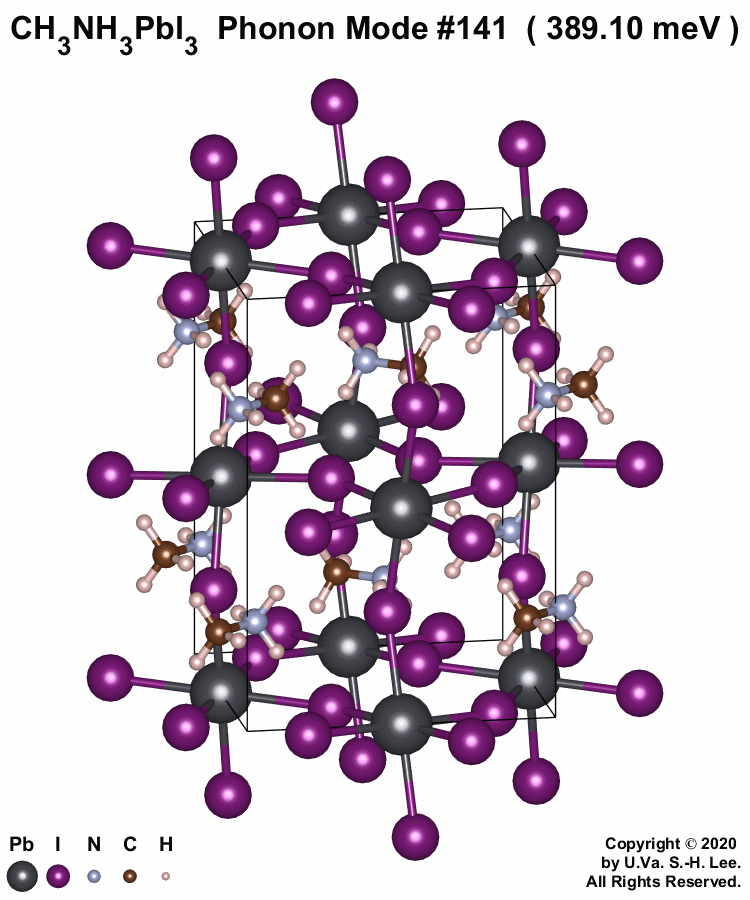

mode 141
389.0983 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch II
mode 142
389.1796 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch II
mode 143
389.2387 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch II
mode 144
389.9938 meV

0% 0% 0% 0% 0% 0% 0% 100%
Asymmetric NH3 Stretch II
