| For each mode, mode energy was estimated at Γ point, and VEFs are written in % and color-indexed as in the above figure. (Click the figure of animation to see on full screen) |
|
mode 81 112.9218 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Bend II |
mode 82 112.9594 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Bend II |

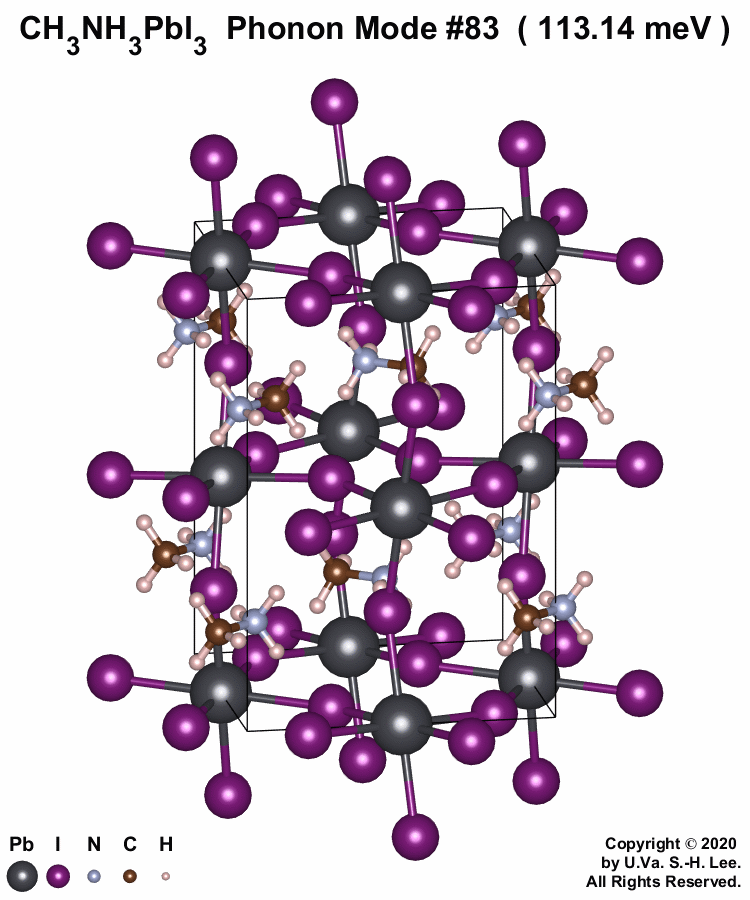

mode 83 113.1386 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Bend II |
mode 84 113.3422 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Bend II |
mode 85 113.942 meV
0% 0% 0% 0% 0% 0% 0% 100% C-N stretch |
|
mode 86 113.9758 meV
0% 0% 0% 0% 0% 0% 0% 100% C-N stretch |

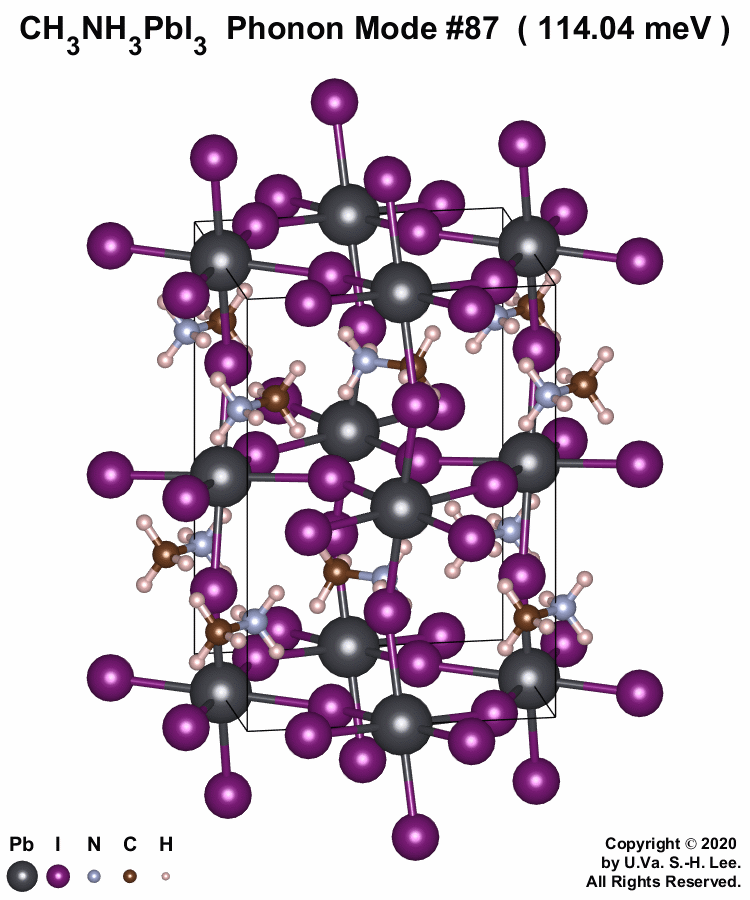

mode 87 114.0392 meV
0% 0% 0% 0% 0% 0% 0% 100% C-N stretch |
mode 88 114.0988 meV
0% 0% 0% 0% 0% 0% 0% 100% C-N stretch |
mode 89 156.3774 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock I |
mode 90 156.4359 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock I |
|
mode 91 156.5232 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock I |
mode 92 156.539 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock I |
mode 93 156.7343 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock II |
mode 94 156.76 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock II |
mode 95 156.7625 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock II |
|
mode 96 156.7965 meV
0% 0% 0% 0% 0% 0% 0% 100% CH3-NH3 Rock II |
mode 97 177.1111 meV
0% 0% 0% 0% 0% 0% 0% 100% Symmetric CH3 Deformation |
mode 98 177.1738 meV
0% 0% 0% 0% 0% 0% 0% 100% Symmetric CH3 Deformation |
mode 99 177.1935 meV
0% 0% 0% 0% 0% 0% 0% 100% Symmetric CH3 Deformation |
mode 100 177.3862 meV
0% 0% 0% 0% 0% 0% 0% 100% Symmetric CH3 Deformation |
