| For each mode, mode energy was estimated at Γ point, and VEFs are written in % and color-indexed as in the above figure. (Click the figure of animation to see on full screen) |
|
mode 21 5.4035 meV
20% 0% 65% 0% 14% 0% 0% 0% |
mode 22 5.4811 meV
17% 1% 79% 1% 2% 0% 0% 0% |
mode 23 5.9876 meV
23% 0% 75% 0% 1% 0% 0% 0% |
mode 24 6.2739 meV
20% 0% 67% 0% 13% 0% 0% 0% |
mode 25 6.3945 meV
16% 7% 59% 6% 8% 0% 3% 0% |
|
mode 26 6.7901 meV
33% 1% 49% 4% 9% 0% 5% 0% |
mode 27 7.4835 meV
20% 0% 65% 0% 10% 0% 5% 0% |
mode 28 7.5884 meV
23% 0% 74% 0% 2% 0% 0% 0% |
mode 29 7.8897 meV
20% 0% 65% 0% 10% 4% 0% 1% |

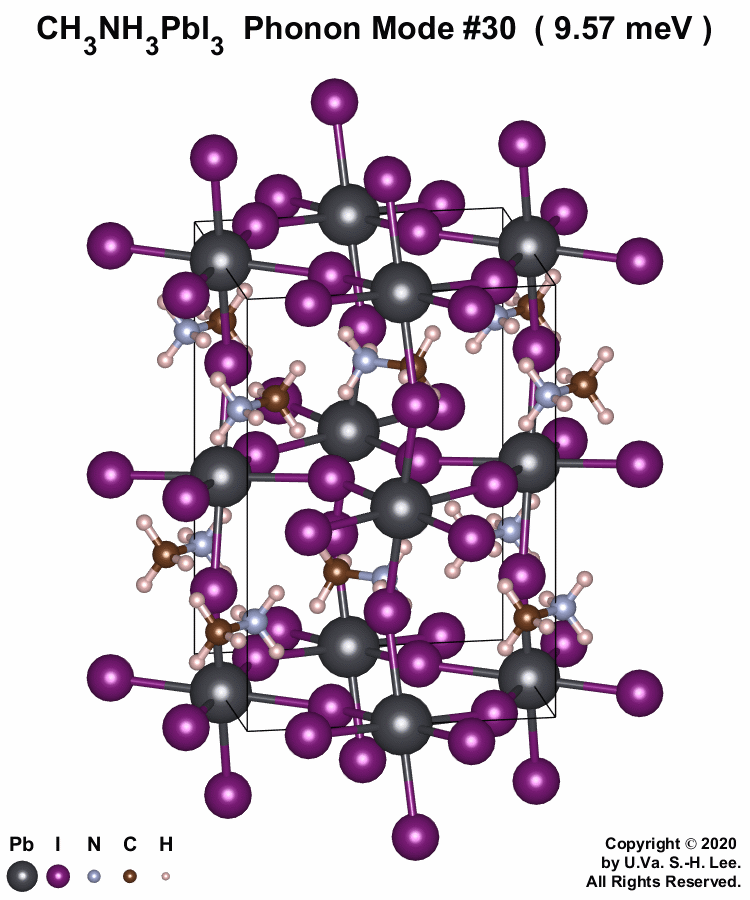

mode 30 9.5742 meV
22% 0% 73% 0% 3% 0% 2% 0% |
|
mode 31 10.3632 meV
2% 38% 7% 22% 0% 25% 3% 2% |
mode 32 10.4029 meV
20% 20% 26% 23% 9% 0% 1% 0% |
mode 33 10.4524 meV
15% 40% 17% 26% 0% 0% 1% 0% |
mode 34 10.4617 meV
3% 34% 8% 21% 4% 21% 7% 2% |
mode 35 10.7837 meV
1% 0% 1% 1% 4% 75% 11% 7% |
|
mode 36 10.9465 meV
12% 11% 3% 70% 1% 0% 3% 0% |
mode 37 11.0387 meV
10% 8% 1% 64% 0% 16% 0% 2% |
mode 38 11.1611 meV
2% 13% 14% 12% 1% 46% 6% 4% |
mode 39 11.1656 meV
16% 24% 5% 52% 2% 0% 1% 0% |
mode 40 11.2214 meV
38% 3% 25% 30% 3% 0% 1% 0% |
