| For each mode, mode energy was estimated at Γ point, and VEFs are written in % and color-indexed as in the above figure. (Click the figure of animation to see on full screen) |
|

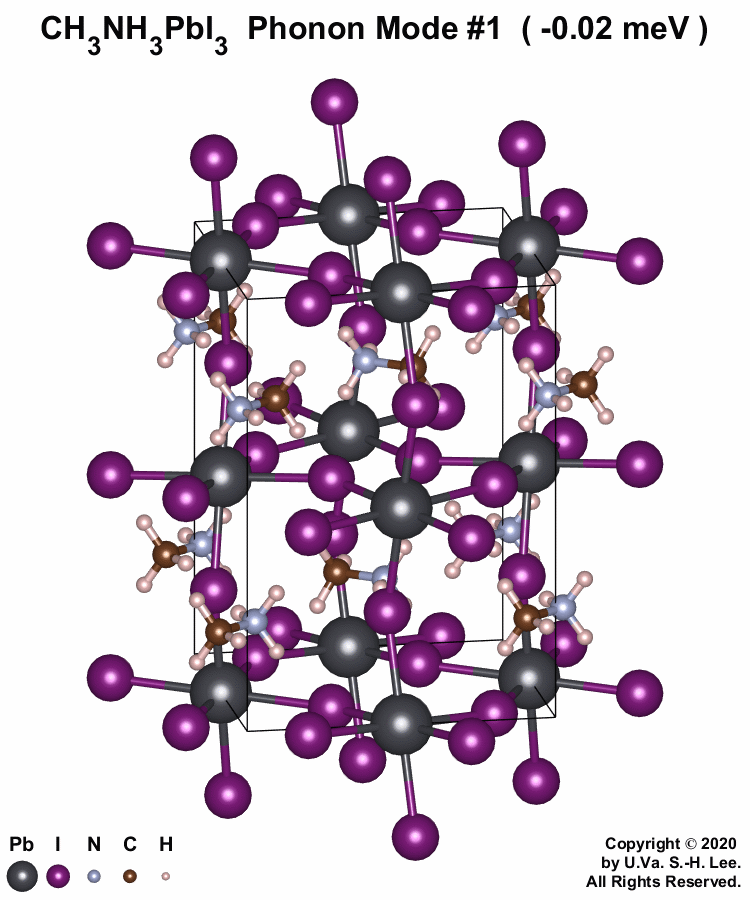

mode 1 -0.016398 meV
78% 0% 11% 5% 5% 0% 0% 0% |
mode 2 -0.010128 meV
78% 0% 11% 6% 5% 0% 0% 0% |
mode 3 -0.002804 meV
78% 0% 11% 5% 5% 0% 0% 0% |
mode 4 1.0661 meV
29% 4% 51% 5% 11% 0% 0% 0% |

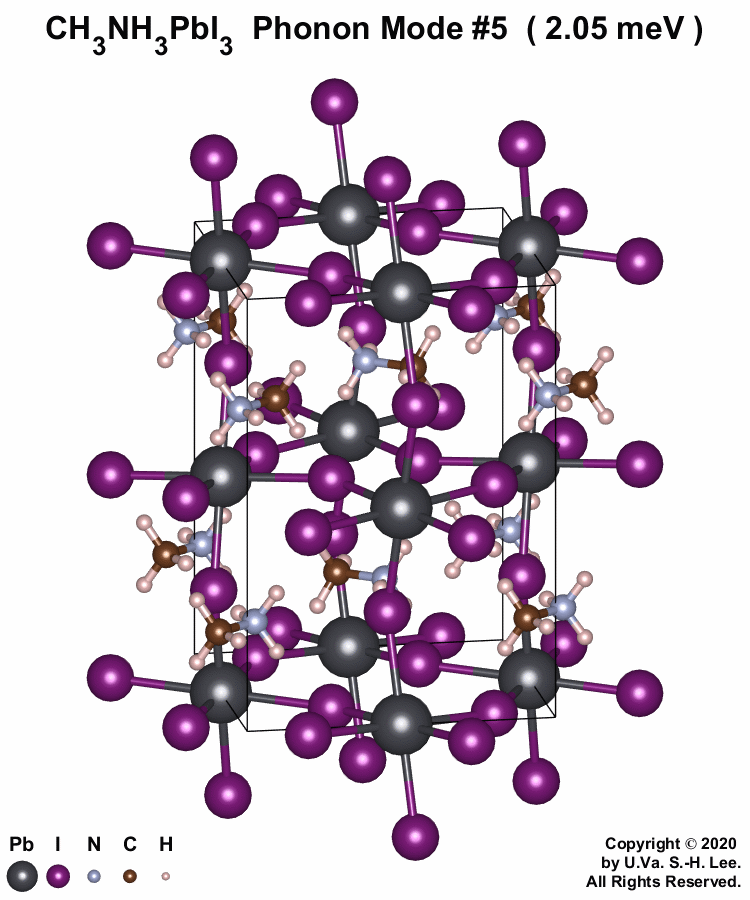

mode 5 2.0471 meV
56% 19% 15% 8% 1% 0% 0% 0% |
|
mode 6 2.1938 meV
66% 24% 1% 8% 0% 0% 0% 0% |
mode 7 2.6009 meV
22% 0% 72% 0% 5% 0% 1% 0% |

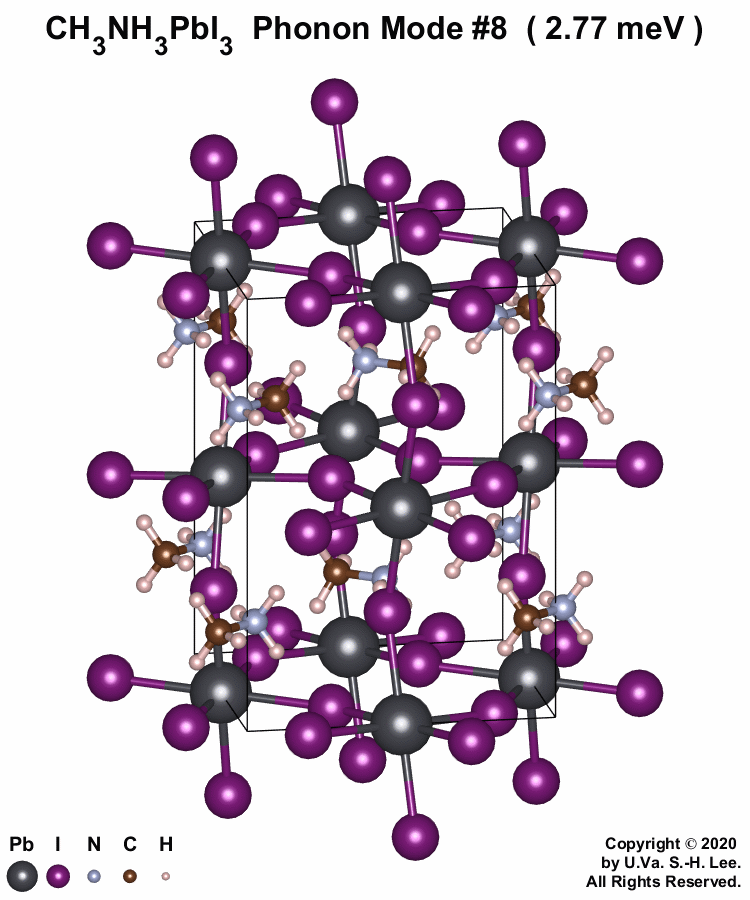

mode 8 2.7687 meV
21% 16% 52% 6% 3% 0% 1% 0% |
mode 9 3.0653 meV
17% 4% 69% 4% 6% 0% 0% 0% |
mode 10 3.2033 meV
32% 5% 51% 5% 4% 0% 2% 0% |
|
mode 11 3.3156 meV
31% 5% 57% 2% 0% 2% 2% 0% |
mode 12 3.4097 meV
44% 40% 11% 5% 0% 0% 0% 0% |
mode 13 3.4509 meV
21% 2% 71% 4% 2% 0% 0% 0% |
mode 14 3.6911 meV
22% 0% 70% 0% 8% 0% 0% 0% |

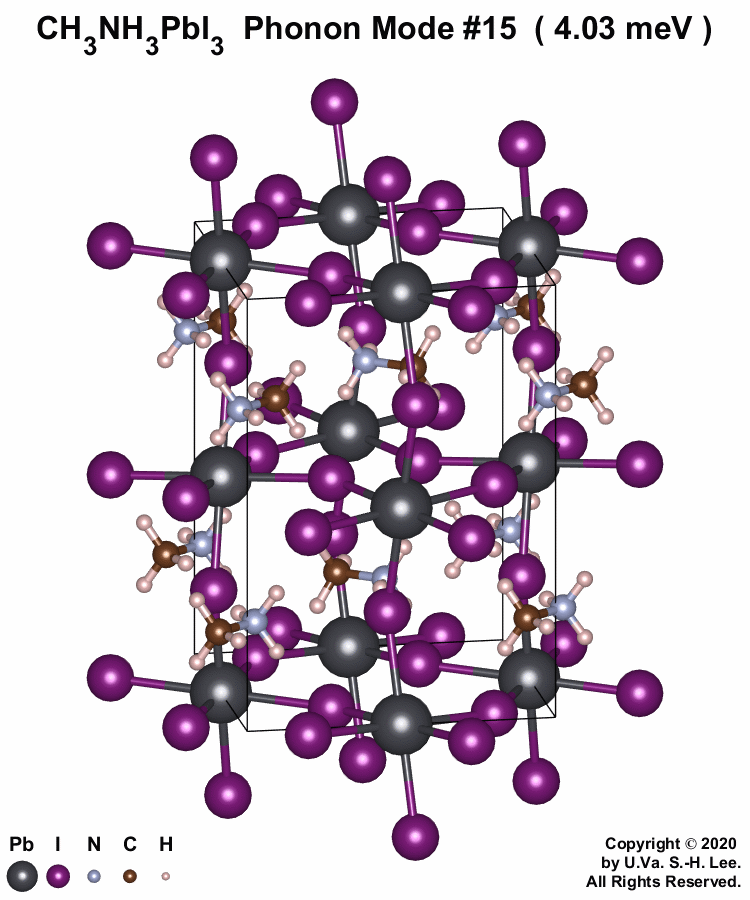

mode 15 4.035 meV
19% 12% 59% 5% 4% 0% 1% 0% |
|
mode 16 4.2083 meV
21% 1% 72% 0% 1% 0% 5% 0% |
mode 17 4.5128 meV
20% 2% 70% 1% 5% 2% 0% 0% |
mode 18 4.7407 meV
21% 0% 67% 0% 12% 0% 0% 0% |
mode 19 4.8132 meV
20% 0% 65% 0% 0% 6% 8% 0% |
mode 20 5.296 meV
22% 0% 71% 0% 2% 1% 5% 0% |
